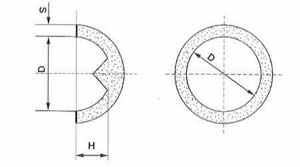

Type U
Caps • Manicotti a calotta • Manchons atmospheriques
| D | H | S | Packing Box / Imballo Scatola |
Packing 12 Boxes / Imballo 12 scatole |
Packing Pallet / Imballo bancale |
|
|---|---|---|---|---|---|---|
| U2 | 60mm | 28mm | 7-9mm | 714 | 8568 | |
| U3 | 80mm | 36mm | 8-10mm | 312 | 3744 | |
| U4 | 100mm | 45mm | 8-10mm | 176 | 2112 | |
| U5 | 120mm | 55mm | 9-11mm | 120 | 1440 | |
| U6 | 140mm | 65mm | 10-12mm | 72 | 864 | |
| U7 | 160mm | 74mm | 11-13mm | 42 | 504 | |
| U8 | 180mm | 83mm | 12-14mm | 35 | 420 | |
| U9 | 200mm | 93mm | 13-15mm | 24 | 288 | 300-400 |
| U220 | 220mm | 102mm | 14-16mm | 15 | 180 | 208-320 |
| U10 | 250mm | 117mm | 14-16mm | 15 | 180 | 208-320 |
| U11 | 300mm | 142mm | 15-17mm | 99-144 | ||
| U12 | 350mm | 165mm | 16-18mm | 81-126 | ||
| U13 | 400mm | 188mm | 17-19mm | 40-60 | ||
| U14 | 450mm | 215mm | 19-21mm | 40-60 | ||
| U15 | 500mm | 238mm | 21-23mm | 40-60 |
